60x105mm Stainless Steel Rope Mesh High Tensile Black Oxidized Enclosure Fence In Zoo

Product Categories
Anping Hengbao hardware wire mesh products factory
Contact Now

60x105mm Stainless Steel Rope Mesh High Tensile Black Oxidized Enclosure Fence In Zoo

  • 1
  • 2
  • 3

Brand Name : Yuntong

Model Number : YT-F240

Certification : CE,SGS

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2000 square meters per week

Delivery Time : 5-8 work days

Packaging Details : Paper carton inside,then wooden case outside

Product name : Enclosure Fence Stainless Steel Rope Network In Zoo

Color : Black

Angle : 60 degree

Surface Treatment : Black Oxide

Cable Mesh Size : Custom-made

Raw Material : stainless steel 304,316,316l

Mesh Type : Knitted Type，Ferruled Type

Mesh Aperture : from 25x25mm to 200x200mm

Cable Diameter : 1.2mm,1.6mm,2.0mm,2.4mm,3.2mm,4.0mm

Applications : zoo enclosure mesh,aviary netting,bird cages,animal mesh

Contact Now

60x105mm High Tensile Black Oxidized Enclosure Fence Stainless Steel Rope Network In Zoo

Stainless Steel Rope Network Information:

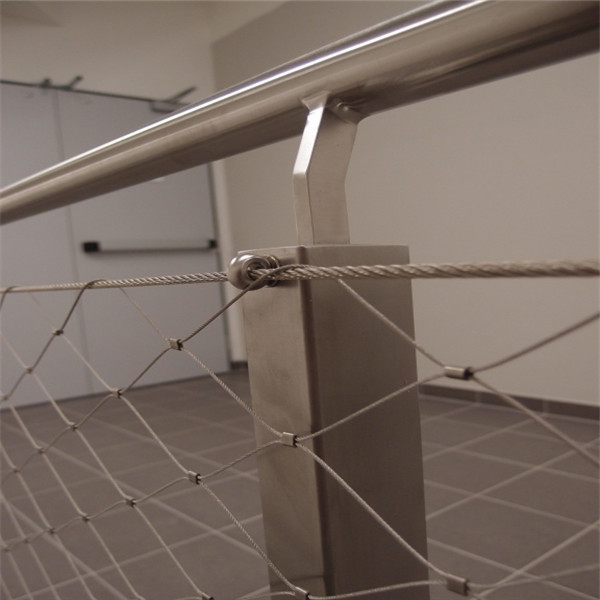

Stainless steel cable mesh has excellent flexible performance,It is have a wide range of applications, including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries etc, Because of its flexibility, it can be applied to almost all complex terrain and irregular space.
Safety is one of the most important issues for predator enclosures to protect zoo visitorsfrom attacks.For this reason, the enclosures have to be constructed very stable to resist highimpact loads

Technical Info​ :


tainless Steel Rope Network is assembed by seamless ferrules and stainlesssteel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle).
Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

The cable structure is 7*7 or 7*19.
Feature of inter-woven cable netting:All the mesh panel is woven by hand.And the mesh is weave in a specifical way to make the cable go through another cable.So it is tight and strong.

Stainless Steel Rope Network
Item No.s Rope Structure Rope Diameter Mesh Hole Size(W x H) Normal Break
inch mm inch mm lbs
YT-3212F 7x19 1/8 3.2 4.75 x 8.23 120 x 207.8 1600
YT-3210F 7x19 1/8 3.2 4 x 6.9 102 x 156 1600
YT-3290F 7x19 1/8 3.2 3.55 x 6.15 90 x 156 1600
YT-3276F 7x19 1/8 3.2 3 x 5.2 76 x 131.6 1600
YT-3251F 7x19 1/8 3.2 2 x 3.46 51 x 88.3 1600
YT-2410F 7x7 3/32 2.4 4 x 6.9 102 x 176.7 920
YT-2490F 7x7 3/32 2.4 3.55 x 6.15 90 x 156 920
YT-2476F 7x7 3/32 2.4 3 x 5.2 76 x 131.6 920
YT-2460F 7x7 3/32 2.4 2.4 x 4.16 60 x 104 920
YT-2451F 7x7 3/32 2.4 2 x 3.46 51 x 88.3 920
YT-2076F 7x7 5/64 2.0 3 x 5.2 76 x 131.6 676
YT-2060F 7x7 5/64 2.0 2.4 x 4.16 60 x 104 676
YT-2051F 7x7 5/64 2.0 2 x 3.46 51 x 88.3 676
YT-2038F 7x7 5/64 2.0 1-1/2 x 2.6 38 x 65.8 676
YT-1676F 7x7 1/16 1.6 1.2 x 2.08 76 x 131.6 480
YT-1651F 7x7 1/16 1.6 2 x 3.46 51 x 88.3 480
YT-1638F 7x7 1/16 1.6 1-1/2 x 2.6 38 x 65.8 480
YT-1630F 7x7 1/16 1.6 1.2 x 2.08 30 x 52 480
YT-1625F 7x7 1/16 1.6 1 x 1.73 25.4 x 44 480
YT-1238F 7x7 3/64 1.2 1-1/2 x 2.6 38 x 65.8 270
YT-1230F 7x7 3/64 1.2 1.2 x 2.08 30 x 52 270
YT-1225F 7x7 3/64 1.2 1 x 1.73 25.4 x 44 270
YT-1220F 7x7 3/64 1.2 4/5 x 1.39 20 x 34.6 270

Package and Delivery :

  • Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

  • Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

  • As customer's requirements

Stainless Steel Rope Network Direction:

  • Horizontal
  • Vertical

60x105mm Stainless Steel Rope Mesh High Tensile Black Oxidized Enclosure Fence In Zoo

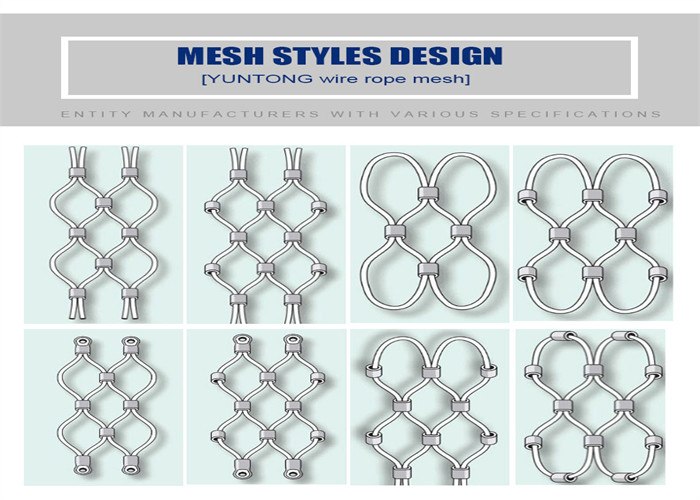

Different Mesh End Types For Installation:

60x105mm Stainless Steel Rope Mesh High Tensile Black Oxidized Enclosure Fence In Zoo

Applications and Advantage of the stainless steel Rope Network :

  • Security. Netting
  • Balustrading infills
  • Safety applications.
  • Landscape solutions.
  • Industrial & marine.
  • Balconies & verandahs.
  • Standard diamond sizes include 50mm & 100mm
  • Can be customised to to almost any diamond size or lengths & widths.
  • Agricultural for control & containment of animals & larger pests.
  • Available in 50mm & 100mm diamond pattern or any custom size.
  • Custom sizes available. (3-4 week lead time)

How to place the order ?

  • Rope diameter and mesh hole size : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
  • Opening orientation : H or V
  • The height and length per piece
  • Drawing is necessary if available
  • Quantity
  • When we get your confirmations, then we will be able to offer our exact price timely.

60x105mm Stainless Steel Rope Mesh High Tensile Black Oxidized Enclosure Fence In Zoo
