S.S. 304 316 Grade Versatile Stainless Steel Cable Bird Netting Mesh
Stainless Steel Cable Netting Information:
The rugged stainless steel wire rope net, cable webnet, can realize typical exquisite and personalized solutions to meet the needs of humans and animals. The goal is not only to provide for animals, but also to provide a diversified environment for tourists. In other words, seek a solution that has a long service life, is almost invisible but strong enough.
Technical Info Of Stainless Steel Cable Netting :
Stainless steel cable netting is assembed by seamless ferrules and stainlesssteel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle).
Wire diameter:1.2 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).
Mesh Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.
The cable structure is 7*7 or 7*19.
| Stainless Steel Cable Mesh |
| Item No.s | Cable Structure | Cable Diameter | Mesh Eye Size(W x H) | Normal Break |
| | | inch | mm | inch | mm | lbs |
| YT-3212F | 7x19 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 7x19 | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 7x19 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 7x19 | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 7x19 | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 7x7 | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 7x7 | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 7x7 | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 7x7 | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 7x7 | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 7x7 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 7x7 | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 7x7 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 7x7 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 7x7 | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 7x7 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 7x7 | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 7x7 | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 7x7 | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 7x7 | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 7x7 | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Package and Delivery :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
As customer's requirements
Production Processes:
Advantage of the stainless steel Cable Mesh:
stainless steel cable mesh also called stainles steel wire rope net.It is a wire mesh fabricated out of woven stainless steel strands with exceptional tensile resilience and flexibility.
It is weather resistant, very strong and requires little maintenance.
Stainless steel mesh is suitable for internal and external applications.
Mounted on railings or stairs, it provides stability and clear guidance. On the facade, it can be used as a climbing support for plants, or it can set a delicate accent as a separating element in a large space.
However, the biggest advantage is its exquisite structure.

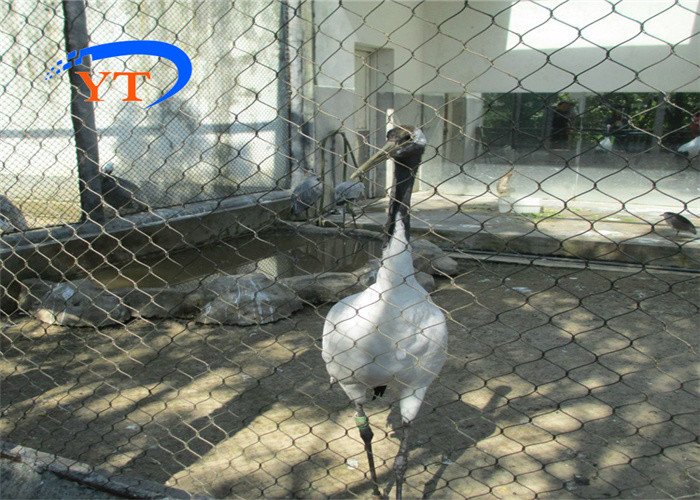

Especially in the zoo animal fence or protective net, the visual barrier caused by the inevitable barrier is the smallest.
- The netting is clipped to the cable.
- The mesh Hole size and diameter can be modified.
- It can be made to customer orders and statically tested – especially suitable for facades.
- High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
- Anti-corrosive, resist the rust, can be repeated use.
- Resists chewing by rodents and other pests (tensile strength approximately 100-110,000PSI)
How to place the order ?
- Wire diameter and mesh opening : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
- Mesh Opening orientation : H or V
- The height and length per piece
- Drawing is necessary if available
- Quantity
- When we get your confirmations, then we will be able to offer our exact price timely.
